High-Performance Piston Seals for Heavy-Duty Excavators: SPGW vs. OK Seals

Table of Content [Hide]

Heavy-duty excavators are the workhorses of construction, mining, and demolition, operating under immense pressures and demanding conditions. At the core of their powerful hydraulic cylinders are piston seals, which are critical for maintaining pressure integrity, ensuring efficient movement, and preventing fluid bypass. For B2B professionals managing these powerful machines, selecting the right high-performance piston seal is paramount for maximizing uptime and operational efficiency. Among the most advanced solutions, SPGW seals and OK seals stand out. This article provides a technical comparison to help you choose the optimal piston seal for your heavy-duty excavator applications.

The Demands on Excavator Piston Seals

Excavator hydraulic cylinders, particularly those for boom, arm, and bucket, experience:

•Extremely High Pressures: Often exceeding 350 bar (5000 psi), leading to high risk of seal extrusion.

•Heavy Side Loads: Caused by digging and lifting, which can distort seals and cylinder components.

•Contamination: Exposure to dirt, dust, and debris, which can abrade seals.

•Shock Loads and Vibrations: Constant impact and dynamic forces that test seal resilience.

•Wide Temperature Fluctuations: From cold starts to high operating temperatures.

Traditional single-piece piston seals often struggle to cope with these combined stresses, leading to premature failure. This is where multi-piece, high-performance designs like SPGW and OK seals excel.

SPGW Piston Seals: The Compact Powerhouse

SPGW (Sealing Profile Guide Wear) seals are a type of compact, multi-piece piston seal specifically designed for heavy-duty, double-acting hydraulic cylinders. They are renowned for their excellent sealing performance, low friction, and exceptional service life under extreme conditions.

Key Features of SPGW Seals:

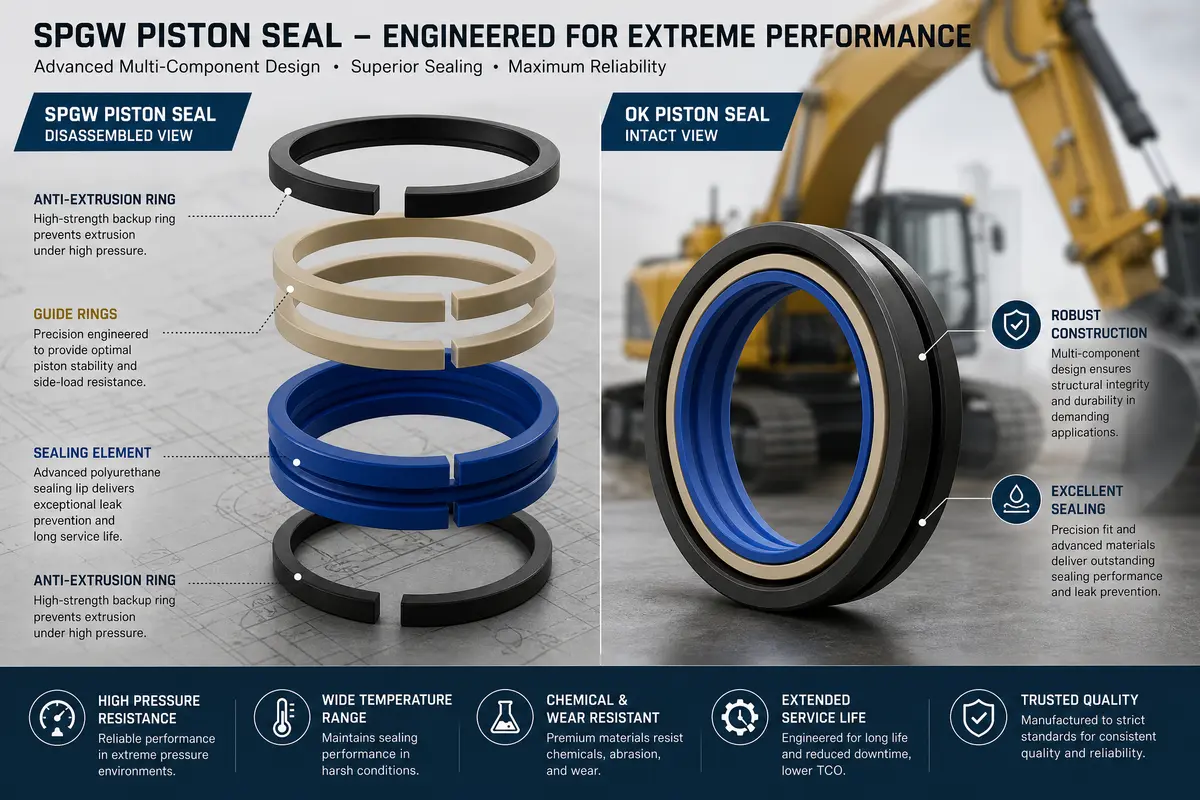

•Multi-Component Design: Typically consists of:

•A primary sealing element (often an elastomer like NBR or FKM).

•Two thermoplastic guide rings (e.g., POM or PTFE composite) that prevent metal-to-metal contact and absorb side loads.

•Two anti-extrusion rings (often PTFE or POM) that support the primary seal and prevent extrusion into the clearance gap.

•Integrated Guide Function: The guide rings are an integral part of the seal assembly, ensuring precise piston guidance.

•Low Friction: The thermoplastic components contribute to reduced friction, minimizing heat generation and energy loss.

•High Pressure Resistance: The anti-extrusion rings provide robust support, allowing SPGW seals to operate reliably at very high pressures.

•Compact Design: Despite being multi-piece, they offer a compact installation space.

Advantages:

•Excellent sealing performance in both directions.

•High resistance to extrusion and abrasion.

•Long service life, even in demanding applications.

•Reduced friction and stick-slip.

•Integrated guiding function.

OK Seals: The Robust Alternative

OK seals (often referring to a specific type of compact piston seal, sometimes also known as a "compact seal" or "heavy-duty piston seal") are another class of high-performance, multi-piece piston seals designed for heavy-duty hydraulic applications. They share many characteristics with SPGW seals, focusing on durability and reliable sealing under harsh conditions.

Key Features of OK Seals:

•Multi-Component Design: Similar to SPGW, they typically comprise:

•An elastomeric sealing element (e.g., NBR or FKM).

•Thermoplastic guide rings.

•Thermoplastic anti-extrusion rings.

•Robust Construction: Engineered for maximum durability and resistance to wear and pressure.

•Good Extrusion Resistance: The anti-extrusion elements effectively prevent the primary seal from being forced into the clearance gap.

•Wide Application Range: Suitable for a broad spectrum of heavy-duty hydraulic cylinders.

Advantages:

•High load-bearing capacity.

•Excellent sealing under high pressure.

•Good wear resistance.

•Reliable performance in demanding environments.

SPGW vs. OK Seals: Choosing the Right Solution

While both SPGW and OK seals are superior choices for heavy-duty excavator piston applications, the selection often comes down to specific design preferences, manufacturer recommendations, and nuanced performance characteristics. Here's a comparative overview:

Feature	SPGW Piston Seals	OK Piston Seals
Design Philosophy	Highly integrated, compact, often with specific guide elements.	Robust, multi-component, focused on durability.
Extrusion Resistance	Excellent, due to dedicated anti-extrusion rings.	Excellent, due to dedicated anti-extrusion rings.
Friction	Generally very low, optimized for smooth operation.	Low to moderate, depending on specific design.
Guiding Function	Integrated and highly effective.	Provided by guide rings, effective.
Application	Heavy-duty, double-acting cylinders, often where space is a concern.	Heavy-duty, double-acting cylinders, general robust applications.
Material Options	NBR/PTFE, FKM/PTFE, POM.	NBR/PTFE, FKM/PTFE, POM.

When to Choose SPGW: Often preferred when a highly compact design with optimized low friction and integrated guiding is a priority. Their precise engineering makes them a top choice for high-performance, critical applications.

When to Choose OK Seals: A reliable and robust choice for general heavy-duty excavator applications where strong sealing and durability are key. They offer excellent performance across a wide range of conditions.

Ultimately, the best choice depends on the specific excavator model, cylinder design, operating pressures, and environmental conditions. Consulting the cylinder manufacturer's specifications or a sealing expert is always recommended.

Conclusion

For heavy-duty excavators, the performance of piston seals directly impacts the machine's power, efficiency, and reliability. Both SPGW and OK seals represent advanced, multi-piece solutions engineered to withstand the extreme demands of these applications, far outperforming conventional seals. By understanding their distinct features and advantages, B2B professionals can make informed decisions that lead to extended cylinder life, reduced maintenance costs, and maximized operational uptime for their valuable equipment. JR Seal offers a comprehensive range of high-performance piston seals, including SPGW and OK types, ensuring you have access to the best sealing technology for your heavy-duty excavator fleet.
