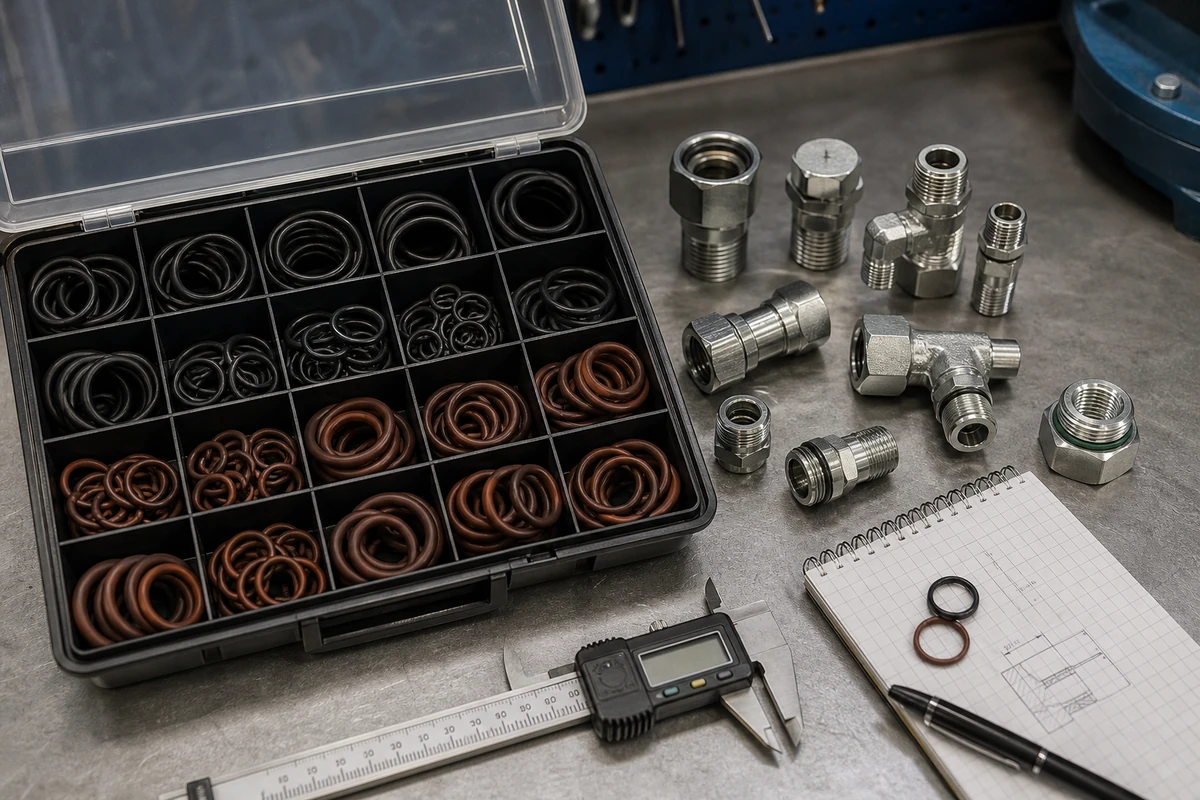

Hydraulic O-Ring Kit for Fittings: How to Record Size, Series and Material

In high-pressure mobile machinery and industrial hydraulic systems, fluid leaks at fitting connections, flange ports, and manifold interfaces are among the most frequent causes of unplanned downtime and environmental contamination. While an O-ring represents one of the smallest and least expensive components in an entire hydraulic circuit, installing an incorrect cross-section, wrong standard series, or incompatible elastomer will inevitably lead to seal extrusion, thermal hardening, or rapid fluid bypass.

For maintenance engineers, workshop supervisors, and aftermarket parts procurement managers, ordering the correct replacement requires a structured method for recording technical parameters. A comprehensive hydraulic O-ring kit for fittings must match exact port geometries—including SAE J514 37° flare, SAE J1453 O-Ring Face Seal (ORFS), SAE J518 Code 61/62 split flanges, and metric DIN 3852 ports. Whether you are reordering standard hydraulic O-ring kit boxes or sourcing custom assortments for heavy equipment fleets, recording accurate size, standard series, and elastomer material ensures immediate supplier confirmation and zero installation mismatch.

1. Common Hydraulic Fitting Interfaces and Where O-Rings Seat

Unlike dynamic cylinder piston seals that endure reciprocating linear motion, fitting O-rings function primarily in static or semi-static joints subject to continuous pressure pulsation and system vibration. Correct identification begins by recognizing the specific mechanical fitting interface:

• O-Ring Face Seal (ORFS / SAE J1453): The O-ring sits in a precision-machined rectangular groove on the flat face of the male threaded fitting. When tightened against the flat sleeve of the female swivel nut, the elastomer compresses axially against the metal face, providing superior resistance to high-pressure vibration and over-torquing.

• SAE Straight Thread O-Ring Boss (ORB / SAE J1926 & ISO 11926): The O-ring seats in an angular chamfer at the base of the male parallel thread. Upon assembly into the manifold port, a backup washer and hex shoulder compress the ring radially and axially into the port cavity.

• SAE 4-Bolt Flange Connections (SAE J518 / ISO 6162 Code 61 & Code 62): Heavy-duty pump outlets, motor heads, and main valve connections utilize Code 61 (standard 3,000 PSI) or Code 62 (high-pressure 6,000 PSI) flanges where an O-ring is captured in an annular face groove against a smooth mating port.

• Metric & BSPP Port Stud Ends (ISO 9974 & ISO 1179): Parallel threads often use an elastomeric O-ring combined with an external metal retaining ring or captive sealing lip positioned against the housing spotface.

• Flange Head & Split Flange Clamps: Excavator main hydraulic lines frequently employ heavy-duty flange O-rings designed to withstand severe pressure spikes exceeding 35 MPa.

2. Step-by-Step Dimensional Measurement: Inside Diameter (ID) and Cross Section (CS)

When OEM part numbers are not stamped on old packaging, precision physical measurement is required. Because used rubber seals undergo compression set, thermal degradation, and oil swelling, measuring the mating metal groove is always preferred over measuring a distorted old ring.

If only the sample O-ring is available, follow these measurement protocols with a calibrated digital vernier caliper:

1. Measure Cross-Section Diameter (CS / W): Position the caliper jaws lightly across the round cord thickness without squeezing or flattening the elastomer. Take at least three measurements around the circumference at 120° intervals and calculate the average.

2. Measure Inside Diameter (ID): For smaller rings, measure the internal span across the center. For larger or flexible O-rings, place the ring on a flat surface without stretching, measure the outside diameter (OD), and calculate the ID using the formula: ID = OD - (2 × CS).

3. Measure Metal Groove Dimensions: If the fitting or port is accessible, record the groove width (axial clearance), groove depth (radial recess), and groove root diameter. This allows technical engineers to cross-verify the standard squeeze percentage (typically 15% to 25% for static hydraulic fittings).

3. Standard O-Ring Series: AS568, Metric, JIS B 2401, and French Standards

Hydraulic equipment from American, European, Japanese, and Korean manufacturers utilizes distinct dimensional standards. Confusing an imperial dash size with an approximately equivalent metric ring will result in either an assembly cut or insufficient initial compression:

• AS568 (Aerospace Standard / American Inch Series): The global benchmark for North American machinery (Caterpillar, Case, John Deere) and ORFS/ORB fittings. Sizes are designated by standardized 3-digit Dash Numbers (e.g., -011, -112, -904). The 900-series (e.g., -906, -908, -912) is specifically engineered for SAE straight thread tube fitting bosses.

• Metric Series (ISO 3601 & DIN 3771): Widely used on European machinery (Volvo, Liebherr) and DIN metric fittings. Metric O-rings are specified directly by Inside Diameter × Cross Section (e.g., 18.0 mm × 2.5 mm, 25.0 mm × 3.0 mm).

• JIS B 2401 (Japanese Industrial Standard): Standard on Komatsu, Hitachi, Kobelco, and Hyundai excavators. Organized into functional series: P Series (Packing / Moving joints), G Series (Gasket / Static face seals), S Series (Special small sizes), and V Series (Vacuum flanges).

• BS 1806 / BS 4518 (British Standard): Common in UK and Commonwealth hydraulic systems featuring British Standard Pipe Parallel (BSPP) threaded adapters.

4. Material Selection Guide: NBR vs. FKM (Viton) vs. SFKM

Selecting the appropriate elastomer material is critical to preventing premature hardening, embrittlement, and extrusion under hydraulic operating conditions:

For high-pressure hydraulic connections exceeding 20 MPa (2,900 PSI), specifying a 90 Shore A durometer elastomer prevents the O-ring from extruding into the clearance gap between fitting shoulders.

5. Standard Data Recording Sheet for Fitting O-Ring Inquiries

To streamline technical review and accelerate quotation turnaround, compile your fitting seal requirements using this structured template before contacting your supplier:

6. Why Pre-Packaged O-Ring Kit Boxes Reduce Field Downtime

In mobile machinery maintenance workshops and heavy equipment service fleets, having an organized assortment of high-demand fitting seals is essential for rapid repairs. Pre-assembled O-Ring Kit Boxes provide significant operational advantages:

• Comprehensive Size Coverage: Standard assortment boxes (such as Caterpillar 4C4728, 4C8253, Komatsu, and universal metric kits) contain all common dash sizes organized in clearly labeled compartments.

• Contamination Protection: Rugged, compartmentalized polymer cases shield elastomer rings from UV degradation, ozone exposure, metal shavings, and workshop grease.

• Fast Visual Identification: Color-coded layout charts inside the lid display exact ID, cross-section, and dash numbers, eliminating trial-and-error fitting attempts during emergency field overhauls.

• Custom Brand Assortments: In addition to universal kits, specialized kits can be pre-configured for dedicated excavator series, wheel loaders, or hydraulic breaker fleets.

Request Your Fitting O-Ring Kits from JR Seal

At JR Seal (Guangzhou Jiarui Seals Co., Ltd.), we manufacture and stock comprehensive inventories of standard and heavy-duty hydraulic sealing solutions. Our product range includes standard NBR O-Ring Series, high-temperature SFKM and FKM fluoroelastomer O-rings, and specialized O-Ring Kit Boxes engineered for global construction equipment brands.

Whether you require standard replacement box sets, bulk industrial packs, or custom O-ring kits and bespoke seal assortments tailored to your specific fleet requirements, our engineering team provides rapid dimensional cross-referencing and competitive wholesale pricing within 24 hours.

Need assistance identifying fitting O-rings or requesting a quote? Submit your size list, part numbers, or sample drawings directly through our Contact Us page or contact our technical sales team via email at jr@djfseal.com.
