JR SEAL IUH Rod Seal

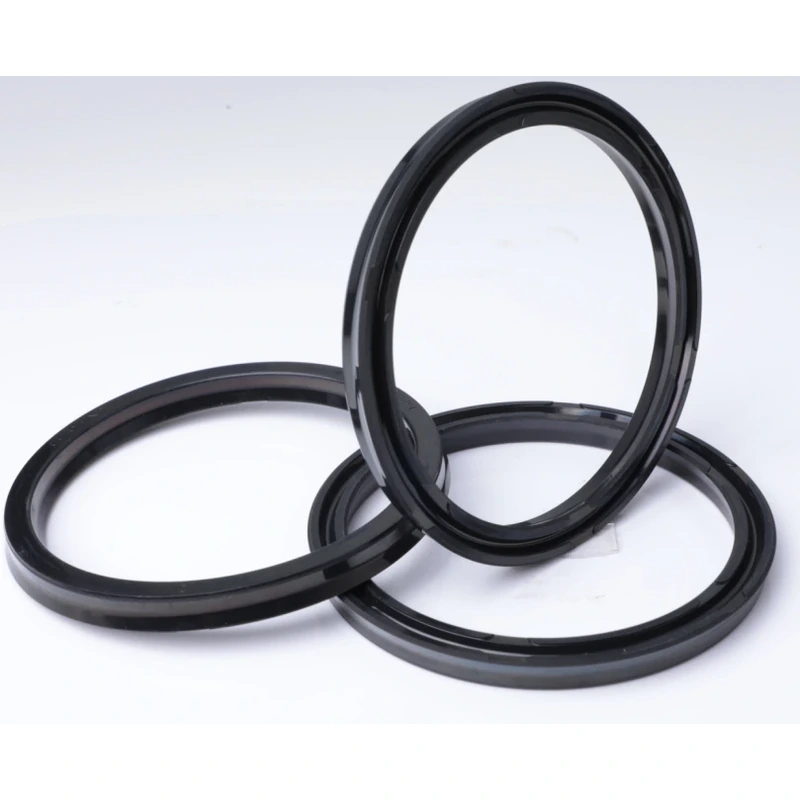

IUH Rod Seal
The IUH rod seal is used as a primary seal for hydraulic cylinder piston rods to help prevent hydraulic oil leakage in reciprocating applications.
Product Profile
| Profile | IUH rod seal |
|---|---|
| Material | Nitrile rubber (NBR) / hydrogenated nitrile rubber (HNBR) |
| Maximum pressure | 14 MPa |
| Temperature range | -25 to 100 °C |
| Application | Reciprocating hydraulic cylinder piston rods |
Advantages
NBR/HNBR material options for profile-specific operating requirements
Rod-seal design for reciprocating hydraulic cylinder applications
Metric size range for equipment and cylinder matching
Profile selection can be reviewed against temperature, pressure, medium, and groove conditions
Application
The IUH rod seal is used as a primary seal for hydraulic cylinder piston rods to help prevent hydraulic oil leakage in reciprocating applications.
This profile is intended for reciprocating hydraulic cylinder rod-sealing applications. Confirm the equipment model, operating medium, pressure, temperature, and groove design before selection.
Installation and Design Notes

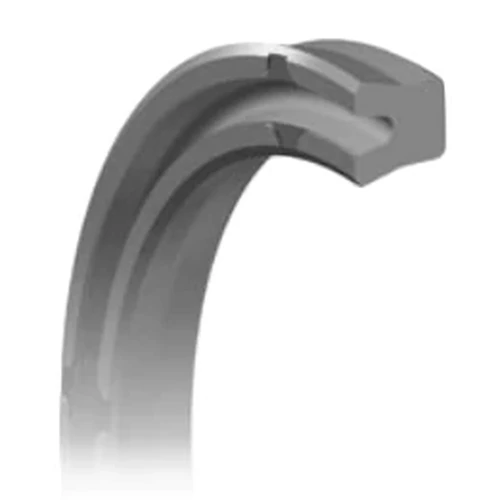

Confirm the IUH profile drawing, rod surface condition, edge radii, extrusion gap, and groove dimensions before installation. The suitable NBR or HNBR material should be selected according to the actual temperature, pressure, hydraulic medium, and service environment.
Available Sizes
All dimensions below are in millimeters (mm). The table is split into three responsive columns for easier desktop reading and remains horizontally manageable on smaller screens. Please confirm the required size and groove details before ordering.
| Inner diameter (mm) | Outer diameter (mm) | Height (mm) | Groove width (mm) |
|---|---|---|---|
| 25 | 33 | 5 | 5.7 |
| 30 | 40 | 6 | 7 |
| 35 | 45 | 6 | 7 |
| 40 | 50 | 6 | 7 |
| 40 | 50 | 7 | 8 |
| 45 | 55 | 6 | 7 |
| 45 | 55 | 7 | 8 |
| 50 | 60 | 6 | 7 |
| 50 | 63 | 10 | 11 |
| 55 | 65 | 6 | 7 |
| 55 | 68 | 10 | 11 |
| 60 | 70 | 6 | 7 |
| 60 | 73 | 10 | 11 |
| 65 | 75 | 6 | 7 |
| 65 | 78 | 10 | 11 |
| 65 | 80 | 9 | 10 |
| 70 | 80 | 6 | 7 |
| 70 | 83 | 10 | 11 |
| 70 | 85 | 9 | 10 |
| 75 | 85 | 6 | 7 |
| 75 | 88 | 10 | 11 |
| 75 | 90 | 9 | 10 |
| 80 | 90 | 6 | 7 |
| Inner diameter (mm) | Outer diameter (mm) | Height (mm) | Groove width (mm) |
|---|---|---|---|
| 80 | 93 | 10 | 11 |
| 80 | 95 | 10 | 11 |
| 80 | 95 | 9 | 10 |
| 85 | 100 | 10 | 11 |
| 85 | 100 | 9 | 10 |
| 85 | 105 | 12 | 13 |
| 90 | 105 | 10 | 11 |
| 90 | 105 | 9 | 10 |
| 90 | 110 | 12 | 13 |
| 95 | 110 | 10.5 | 11.5 |
| 95 | 110 | 9 | 10 |
| 95 | 115 | 12 | 13 |
| 100 | 115 | 10 | 11 |
| 100 | 115 | 9 | 10 |
| 100 | 120 | 12 | 13 |
| 100 | 120 | 12 | 13 |
| 105 | 120 | 10 | 11 |
| 105 | 120 | 9 | 10 |
| 105 | 125 | 12 | 13 |
| 110 | 125 | 10 | 11 |
| 110 | 125 | 9 | 10 |
| 110 | 130 | 10 | 11 |
| 110 | 130 | 12 | 13 |
| Inner diameter (mm) | Outer diameter (mm) | Height (mm) | Groove width (mm) |
|---|---|---|---|
| 115 | 130 | 10 | 11 |
| 115 | 130 | 9 | 10 |
| 115 | 135 | 12 | 13 |
| 115 | 135 | 16 | 17 |
| 120 | 135 | 9 | 10 |
| 120 | 140 | 10 | 11 |
| 120 | 140 | 12 | 13 |
| 120 | 140 | 15 | 16 |
| 125 | 140 | 9 | 10 |
| 125 | 145 | 12 | 13 |
| 130 | 145 | 10 | 11 |
| 130 | 145 | 9 | 10 |
| 130 | 150 | 12 | 13 |
| 135 | 150 | 9 | 10 |
| 140 | 155 | 9 | 10 |
| 140 | 160 | 12 | 13 |
| 145 | 160 | 9 | 10 |
| 150 | 165 | 9 | 10 |
| 160 | 180 | 12 | 13 |
| 170 | 190 | 12 | 13 |
| 180 | 200 | 12 | 13 |
Ordering Information
Please provide the required inner diameter, outer diameter, height, groove width, equipment model, and operating medium. JR Seal will confirm the suitable IUH size and material before quotation.
Inquiry
Send the equipment model, required dimensions, operating medium, pressure, temperature, and quantity to confirm the correct rod seal. Contact JR Seal for technical matching and quotation.
