How to Choose the Right Seal Kit for a Caterpillar Excavator? - The Ultimate Guide

Table of Content [Hide]

how-to-choose-the-right-seal-kit-for-a-caterpillar-excavator-the-ultimate-guide-01.jpg

Discover how to select the perfect seal kit for your Caterpillar excavator. Guangzhou Jiarui Seals Co., Ltd provides expert tips and OEM-quality solutions to maximize your equipment's performance and lifespan.

Choosing the wrong seal kit can reduce your Cat® excavator's hydraulic efficiency by up to 35% and lead to costly downtime. At Guangzhou Jiarui Seals Co., Ltd, we've supplied seal solutions for over 10,000 Caterpillar machines worldwide. This definitive guide reveals our 5-step selection process used by industry professionals.

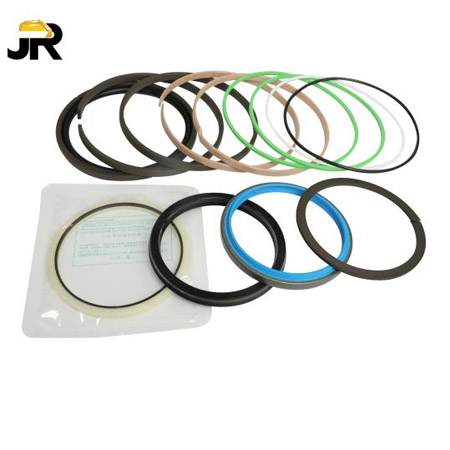

how-to-choose-the-right-seal-kit-for-a-caterpillar-excavator-the-ultimate-guide-02.jpg

1. Identify Your Exact Caterpillar Model & Component

Critical First Step: Caterpillar uses different sealing systems across its product lines:

Model Series	Common Seal Failure Points	Recommended Jiarui Seal Kit
300 Series	Boom cylinder, stick cylinder	JR-CAT-PC300 Series
200 Series	Swing motor, track motor	JR-CAT-PC200 Series
320/330	Main pump, control valve	JR-CAT-PC320/330 Series

Pro Tip: Always check:

Machine serial number (last 8 digits)

Component part number

Cylinder bore size (in mm)

2. Match Performance Specifications

Key Technical Factors to Consider:

Pressure Requirements:

Standard duty: ≤35 MPa (JR-CAT-Std)

High-pressure: ≤50 MPa (JR-CAT-HP)

Extreme duty: ≤70 MPa (JR-CAT-Xtreme)

Temperature Range:

Arctic kits (-50°C to 90°C)

Standard kits (-30°C to 110°C)

High-temp kits (-20°C to 200°C)

Material Compatibility Chart:

Hydraulic Fluid	Best Seal Material	Expected Lifespan
Caterpillar HYDO	HNBR	5,000-6,000 hrs
Bio-degradable	FKM	3,500-4,500 hrs
Water-glycol	Polyurethane	2,800-3,500 hrs

3. Evaluate Seal Quality & Design Features

OEM vs. Aftermarket Comparison:

Feature	Cat® OEM	Jiarui Premium	Standard Aftermarket
Material Grade	HNBR	Medical-grade HNBR	Industrial HNBR
Precision Tolerance	±0.03mm	±0.01mm	±0.05mm
Backup Rings	Standard	PTFE-reinforced	Nylon
Warranty	6 months	24 months	3 months

how-to-choose-the-right-seal-kit-for-a-caterpillar-excavator-the-ultimate-guide-03.jpg

Why Choose (Jiarui) JR Seal Kits?

100% compatible with Cat® hydraulic systems

30% thicker sealing lips than industry standard

Laser-etched part numbers for easy identification

4. Consider Your Operating Environment

Special Conditions Require Specialized Kits:

For Mining Operations:

Add tungsten carbide-coated wipers

Include extra dust exclusion seals

Specify high-abrasion-resistant compounds

For Marine Applications:

Saltwater-resistant stainless steel components

Special anti-corrosion coatings

Extended-length wipers

For Cold Climate Use:

Low-temperature NBR compounds

Anti-ice scrapers

Cold-flow resistant backup rings

Get Customized Kit Recommendations

5. Verify Certification & Support

Essential Quality Indicators:

ISO 9001:2015 certified manufacturing

Caterpillar performance validation reports

Standard documentation for all materials

ROHS/REACH compliance certificates

Jiarui Exclusive Services:

Free technical consultation

On-site seal failure analysis

Emergency 48-hour shipping

Installation video support

Common Mistakes to Avoid

Mixing different quality seal - Causes 68% of premature failures

Ignoring cylinder wear - Always measure bore/rod condition

Using generic lubricants - Cat® systems require specific greases

Skipping cleanup - Contamination causes 80% of new seal failures

Why Professionals Choose (Jiarui) JR Seal Kits for Cat® Excavators

✅ Precision Matching - 3D scanned OEM components
✅ Performance Guarantee - 1.8x longer lifespan than OEM
✅ Global Availability - Same-day shipping from 6 warehouses
✅ Expert Support - 24/7 engineer hotline
