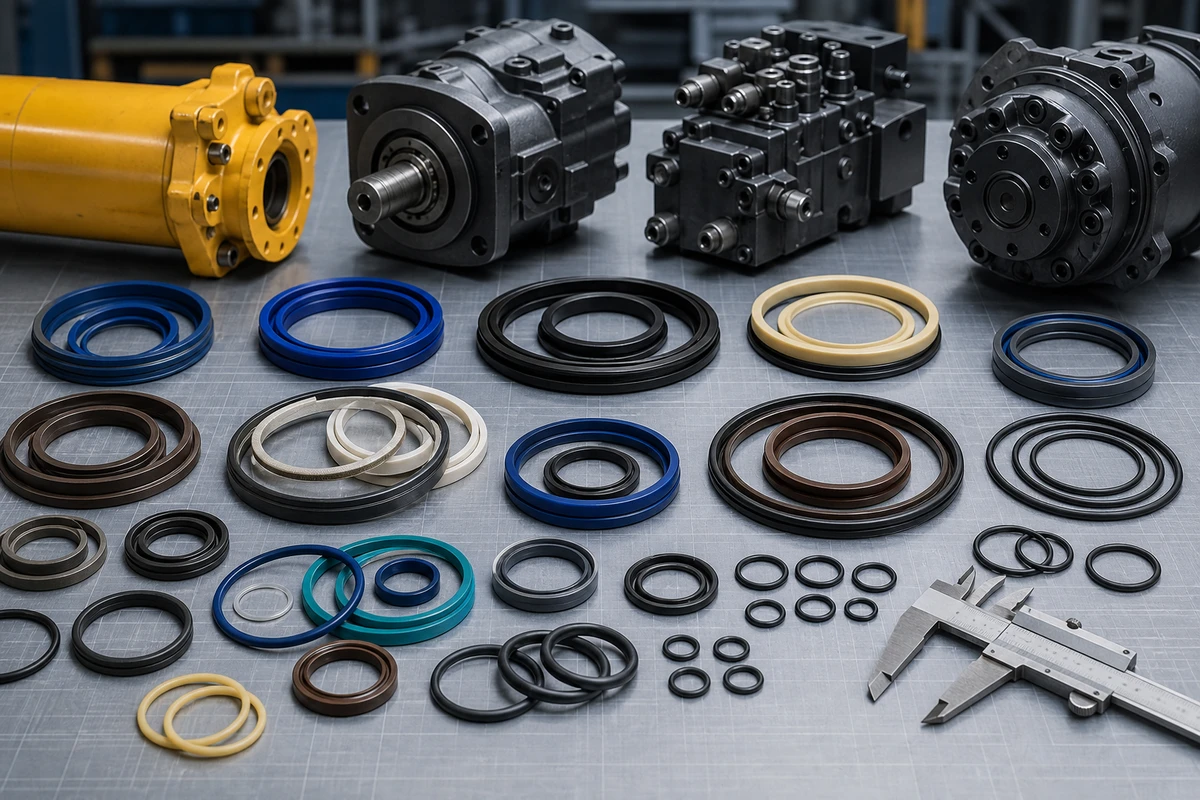

When maintaining heavy construction machinery—such as excavators, wheel loaders, bulldozers, and backhoes—ordering replacement seal kits by specific hydraulic component rather than generic machine model numbers prevents costly misfits, unnecessary fluid leaks, and extended machine downtime.
Modern earthmoving machinery relies on complex high-pressure hydraulic circuits where each component operates under distinct mechanical dynamics, temperature profiles, and pressure cycles. A standard 20-ton excavator, for example, contains dozens of specialized sealing configurations across its hydraulic cylinders, main pump, control valve block, travel motors, swing drive, and center joint.
This guide provides an engineering-backed, component-by-component breakdown for equipment fleet managers, heavy machinery repair workshops, and spare parts distributors to systematically identify, specify, and procure the right replacement seal kits.
Hydraulic cylinders convert fluid power into linear mechanical force and represent the highest-frequency seal replacement item on construction sites. Cylinders are directly exposed to airborne abrasive dust, high working pressures, pressure spikes, and continuous rod cycling.
Dust Wiper Seals (DKBI / Scraper): Fitted at the outer cylinder head to scrape off mud, stone dust, and moisture from the extending rod.
Rod Seals (IDI / IUH / U-Cup): The primary dynamic barrier preventing hydraulic oil from leaking along the reciprocating piston rod.
Buffer Seals (H660 / HBTS): Positioned ahead of the primary rod seal to absorb extreme shock pressures and cushion the main rod seal.
Piston Seals (SPGW / SPGO / OK Seals): Bi-directional or heavy-duty seals mounted on the piston head to prevent internal blow-by between cylinder chambers.
Wear Guide Rings (Phenolic / PTFE): Absorb transverse side loads and prevent metal-to-metal contact between the rod/piston and the barrel.
Static O-Rings & Backup Rings: Seal the cylinder gland/head to the barrel tube.
When requesting a Hydraulic Cylinder Seal Kit, always specify whether the repair is for the boom, arm (stick), bucket, steering, or blade cylinder. For non-standard or re-machined cylinders, providing the exact rod diameter, bore inner diameter, and gland groove dimensions ensures an exact dimensional fit.
The hydraulic pump is the heart of any construction machine, converting mechanical engine power into high-pressure fluid flow (typically operating at 30 to 35 MPa / 300 to 350 bar). Pump seals must endure high rotational speeds, elevated oil temperatures, and internal case drain pressures.
High-Pressure Rotary Shaft Seals: Engineered with specialized lip geometries (e.g., FKM / Fluororubber with stainless steel garter springs) to withstand shaft rotation and case pressure without hardening.
Valve Plate & Port Gaskets: Precision elastomeric seals and custom-profile gaskets sealing the pump head and regulator controls.
Swash Plate & Cradle O-Rings: Static and semi-dynamic seals maintaining chamber isolation during displacement adjustments.
When sourcing a Hydraulic Pump Seal Kit, the pump manufacturer code and serial nameplate (e.g., Kawasaki K3V / K5V series, Rexroth A8VO / A10VO series, or Komatsu HPV series) are critical. Pumps from the same excavator model family may vary depending on the production year or regional specification.
The main control valve orchestrates fluid distribution to all actuators across the machine. A typical excavator control valve contains multiple spools, pilot relief valves, check valves, and internal crossover galleries.
Control valve spools experience rapid linear shifting and high micro-clearance tolerances. Internal leakage inside the MCV causes cylinder drifting, sluggish actuator response, and loss of hydraulic efficiency.
Spool Wiper and End-Cap Seals: Prevent external oil leakage at the mechanical or pilot linkages.
High-Durometer O-Rings with Anti-Extrusion Backup Rings: Fitted along internal relief cartridges and spool sections to resist gap extrusion under 350 bar operating peaks.
Section Interface Seals: Formed elastomeric gaskets between individual valve block slices.
Explore our dedicated Control Valve Seal Kit range for leading excavator and earthmoving platforms.
Travel motors drive the crawler tracks and operate in severe lower-undercarriage conditions—frequently submerged in mud, water, gravel, and construction slurry.
Duo-Cone / Floating Oil Seals: Heavy-duty metal-to-metal face seals with elastomeric toric rings installed at the sprocket hub to lock out external wet abrasive slurry.
Motor Internal Hydraulic Seals: Piston motor rotary shaft seals, brake chamber O-rings, and valve plate packing that contain high-pressure hydraulic drive oil.
When ordering a Travel Motor Seal Kit, separate the final drive reduction gearbox mechanical seal requirements from the hydraulic drive motor seal requirements to ensure full coverage during a complete undercarriage overhaul.
The swing motor powers 360-degree upperstructure rotation, subjecting seals to frequent start-stop inertial shocks, rapid directional reversals, and dynamic braking pressures.
Shaft Oil Seals: Must prevent hydraulic oil from entering the swing gearbox grease cavity while resisting pressure spikes generated during rapid swing deceleration.
Brake Piston Seals: Dynamic O-rings and backup rings controlling the spring-applied, hydraulically released swing parking brake.
Check our precision-manufactured Swing Motor Seal Kit catalog to ensure smooth slew operation and prevent grease bath contamination.
The center joint (swivel joint) connects the rotating upper structure to the stationary lower undercarriage, transmitting high-pressure travel oil, return fluid, and pilot brake lines across 360-degree continuous rotation.
Rotary Step Seals (PTFE Glyd Rings + O-Ring Energizers): Low-friction, wear-resistant multi-channel rotary seals engineered to isolate 4 to 8 independent hydraulic passages simultaneously.
Dust Wiper & Casing O-Rings: Prevent debris ingress into the center joint bearing housing.
Worn swivel seals cause track speed imbalance (machine pulling to one side) or travel power loss. Sourcing a dedicated Center Joint Seal Kit restores full balance across all travel circuits.
Beyond the primary drive and cylinder circuits, heavy equipment maintenance programs require standardized seal kits for secondary actuators and demolition attachments:
Track Adjuster Seal Kits: Heavy-duty grease piston seals with polyurethane back-up rings engineered to withstand extreme track tension loads.
Pilot Valve / Joystick Seal Kits: Small-diameter O-rings and pusher seals for proportional pilot controls in the operator cabin.
Hydraulic Breaker Seal Kits: Ultra-high impact polyurethane and stepped gas-chamber seals designed for high-frequency rock hammer vibrations (see Hydraulic Breaker Seal Kit).
Universal Fitting & Metric O-Ring Assortments: High-grade 90 Durometer NBR/FKM boxed assortments for field port fittings and hose connections (available in our O Ring Kit Box series).
To streamline procurement and eliminate order mismatches, provide your supplier with these core data points for each component:
| Hydraulic Component | Primary Identification Data Needed | Critical Operating Parameter |
|---|---|---|
| Hydraulic Cylinder | Machine Model + Cylinder Position (Boom/Arm/Bucket) + Rod/Bore Dimensions | Pressure peaks, dust exposure, cycle speed |
| Hydraulic Main Pump | Pump Brand + Nameplate Model Code (e.g. K3V112, A8VO107) | High rotational RPM, fluid temperature |
| Main Control Valve | Valve Assembly Part Number + Spool Section Count | Anti-extrusion resistance, zero drift tolerance |
| Travel Motor | Motor Brand/Model + Final Drive Specification | External slurry exclusion + internal rotary sealing |
| Swing Motor | Slew Motor Part Number + Gearbox Separation Type | Inertial braking shock resistance |
| Center Joint (Swivel) | Rotary Hub Port Count + Core Diameter | Continuous 360° low-friction multi-port isolation |
For comprehensive application guidelines across earthmoving, mining, and industrial machinery, explore our Construction Equipment Sealing Applications hub.
